Fuel Pump Uprated 340 Stealth In Tank Centre Inlet
Click Image for Gallery
High Flow Uprated In Tank 340 Series Stealth Fuel Pump for most applications with centre inlet.
Will fit VX220 models with the supplied fuel filter.

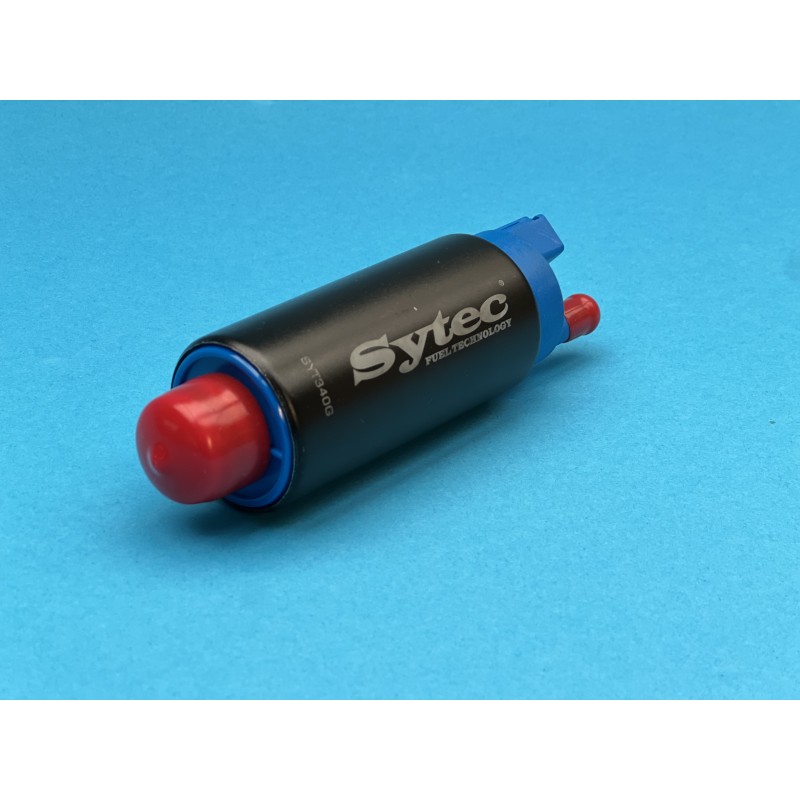

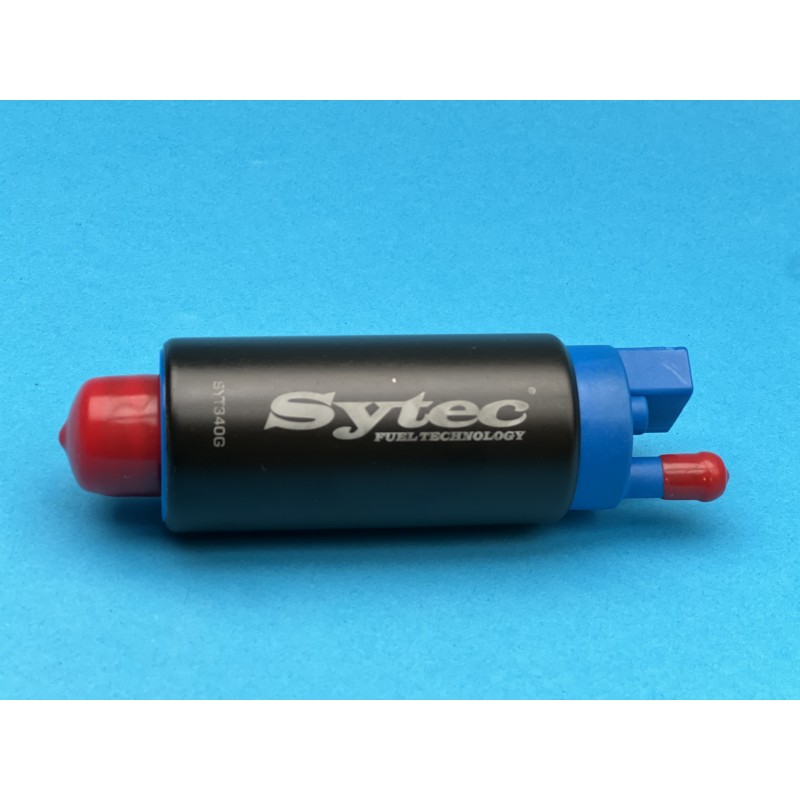

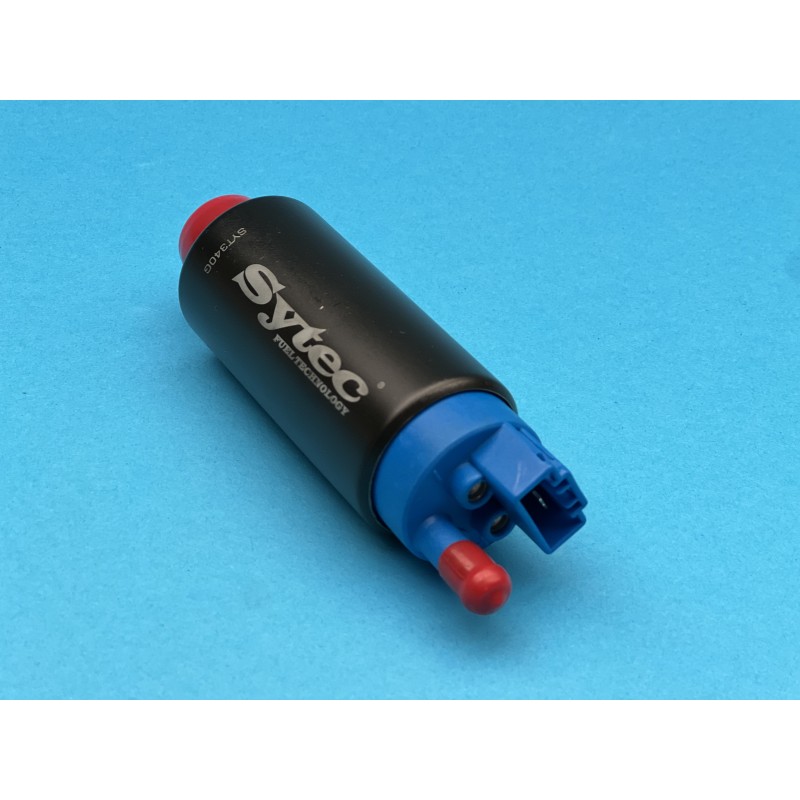

This 340 Fuel Pump is a high-output, in-tank electric fuel pump which is a compact, lightweight pump that bolts into the existing OE fuel pump assemby with just minor modification. This pump is ideal for applications requiring more flow while retaining the factory fuel lines and mounting provisions available in the Original Equipment (O.E.) configuration.
Features a centre inlet 21mm.
• Fits VX220 2.2 16v, 2.2 16v Supercharged, VX220 Turbo, Corsa C, Calibra Turbo with minor modification to the OE fuel pump housing.
• Internal Check Valve
• Vapour Purge Port in base of pump
• Designed for in-tank use only
• Turbine pump mechanism increases durability.
• Suitable for standard and modified cars.
Specifications:
Flow Rate - 340 lph @ 40psi :: 300 lph @ 50psi :: 275 lph @ 60psi
Weight - 355 grams
External Materials - Black Steel Body
Inlet Fitting - Offset Inlet Inline with Outlet
Outlet Fitting - 8.5mm OD
Impeller Design - Regenerative Turbine
Terminal Post - Spade Terminal OE Fitment (6.2mm)
Min Voltage Input - 6 vdc
Max Voltage Input - 18 vdc
Current Draw - (40 psi) 12 amps (13.8vdc)
Dimensions*:
Pump Overall Height (including outlet) - 120mm
Pump Body Height - 80mm
Pump Body Diameter- 39mm
Outlet Length - 21mm
Outlet Diameter - 8.5mm
*All dimensions are approximate
