Coilover Kit KW Clubsport 2-Way - Astra H 3 Dr inc VXR/OPC

4-5 Weeks Coilover Kit KW Clubsport 2-Way - Astra H 3 Dr inc VXR/OPC
Coilover Kit KW Clubsport 2-Way - Astra H 3 Dr inc VXR/OPC

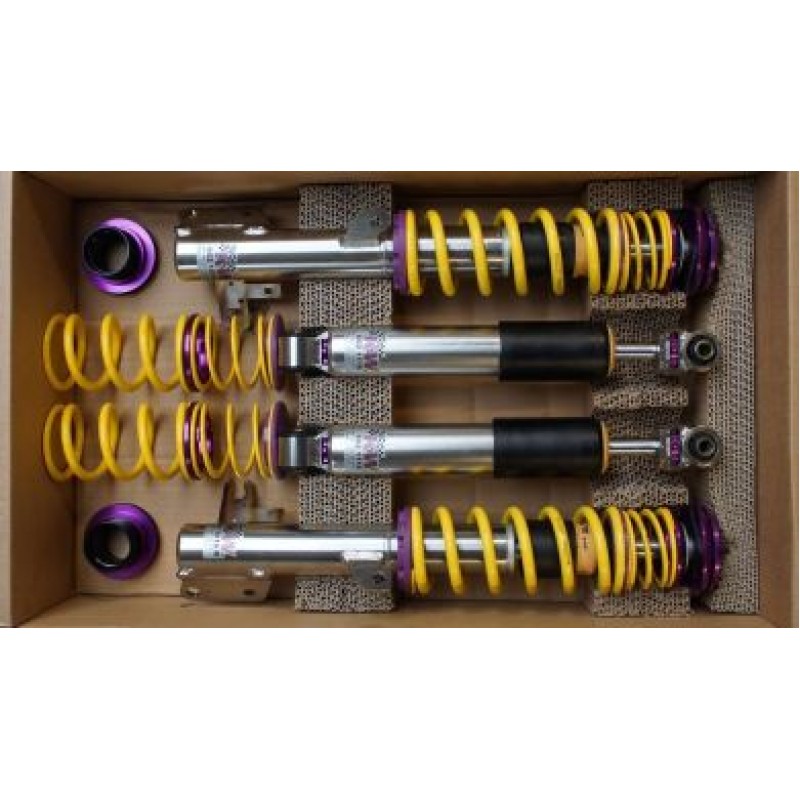

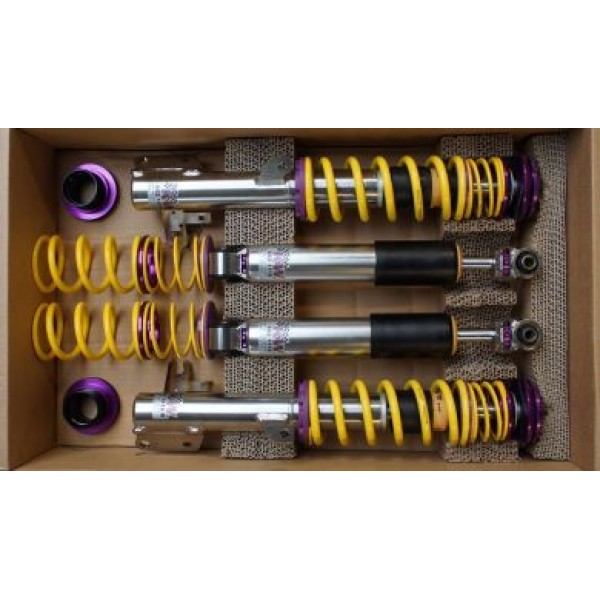

1 x Full Coilover Kit:
2 x Front Coilover Strut and Spring Assemblies with top mounts and helper springs. 2 x Rear Dampers. 2 x Rear Spring and Adjuster Assemblies with helper springs. Instructions. 1 x KW Toolkit

Fitting From £237.60 inc VAT
Note: Once settled 4 wheel alignment will be required.

KW Coilover Kits are supplied with a 2 year return to base manufacturer warranty.

Quite Simply The Best Coilover Kit for the Astra H VXR chassis for trackday enthusiats.

The KW Clubsport coilovers utilize the uncompromising transfer of technology from the world of motorsports to track day and street driving.


Designed for the more discerning driver who wants the best for their trackday car but with a level of suitability still for road use on occasion. The KW Clubsport Coilver kit is the next step up from the excellent but more road biased KW V3 kit with a more 'track-focussed' spec featuring matched springs with helper sprting set up .

The KW Clubsport Coilovers combine KW's high-end racing technology with maintenance-free KW OEM components and TÜV certificate. This will provide you the ideal product to take full potential of your sports car during track days, sports car driving clinics, enthusiast drives on Grand Prix circuits and on tracks such as the Nürburgring Nordschleife.

Designed on the toughest race track in the world: The Nürburgring Nordschleife

The KW Clubsport coilovers provide the ability to adjust for different track surfaces, sharp turns and sharp elevation changes. The KW Clubsport is in its home environment on the famous twists and turns of the 20.8 km long Nürburgring Nordschleife circuit.

As a supporting suspension manufacturer to numerous different racing series. KW had claimed 6 ADAC Zurich 24-hour victories within 10 years at the famous Nürburgring circuit and the ADAC GT Masters 2011 Championship. More then 70 race teams are equipped with KW coilover systems in the VLN Endurance Championship series. These race teams rely on KW's racing expertise and experience for their vehicle setup. This information is mirrored in the development of the KW Clubsport coilover systems.

The KW Clubsport 2-way provides the user numerous adjustment settings. This allows to user to dial the suspension setup to his/hers driving style and to adjust or match the tire/wheel setup of the vehicle.

Rebound and compression dampening is independently adjustable by hand via the integrated click adjusters. Adjustable top mounts are optional on certain applications.

In contrast to anodized adjustable spring seats made of aluminum, at KW we use a durable polyamid composite collar with a stainless steel insert. So even with the influence from dirt particles, such as brake dust or sand grains, the polyamide composite collar will not be damaged.

KW Clubsport Coilovers 2-way Racing Technology

The rebound adjuster knob provides 16 precise clicks to personally dial in your desired vehicle setup. Thus allowing you the possibility to influence wheel/tire loads or take into concern chassis characteristics. Independent from rebound adjustment is the compression dampening, 12 precise adjustment clicks are provided to adjust the low-speed dampening. Most notably used to dial in wheel/tire setup.

These adjustment features allow the user to dial in vehicle weight, wheel/tire combinations, various road surfaces and environmental conditions.

- independently adjustable rebound and compression damping technology
- stainless steel technology inox-line
- continuous lowering
- TÜV-tested adjustment range
- high-quality components for a long-term durability
- adjustable rebound damping with 16 precise clicks
- adjustable compression damping with 12 precise clicks
- unique, independent damping force adjustment
- optional spherical bearing aluminum top mounts
- polyamid composite collar

Setup: Application and damper settings

The KW Clubsport 2-way coilovers provide the ideal adjustment range for race tracks such as the Nürburgring Nordschleife and other race circuits.

Version:Clubsport 2-way
Damping Adjustment:Rebound and Compression Damping Front and Rear
Adjustment FA/RA:Thread/Thread
Material: Stainless Steel
Approval:TUEV certificate
Contents:Set FA coilover struts, RA springs with height adjustment + dampers incl. FA top mounts
Axle Load FA/RA: -1060 kg/-840 kg
Year:2005-2010
Vehicle type:Vauxhall/Opel - Astra H 3 Door inc 2.0 Turbo VXR/OPC 240PS 1998cc - 4Cyl. Petrol

Notes:

  • Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers)
  • For cars which have electronic dampers, make sure they are shut down. this can be carried out using Tech 2. Specific electronic damper deactivation kits are also available from KW.
  • Clubsport coilover with top mount: only with front axle top mount available

Enquiry Form.

Write a review

Please login or register to review
  • Views: 6233
  • Product Code: 35260844
  • Availability: 4-5 Weeks
  • £2,293.00
  • Ex Tax: £1,910.83
