Alloy Fuel Tank Long Range - VX220/Speedster

14-21 Days Alloy Fuel Tank Assembly

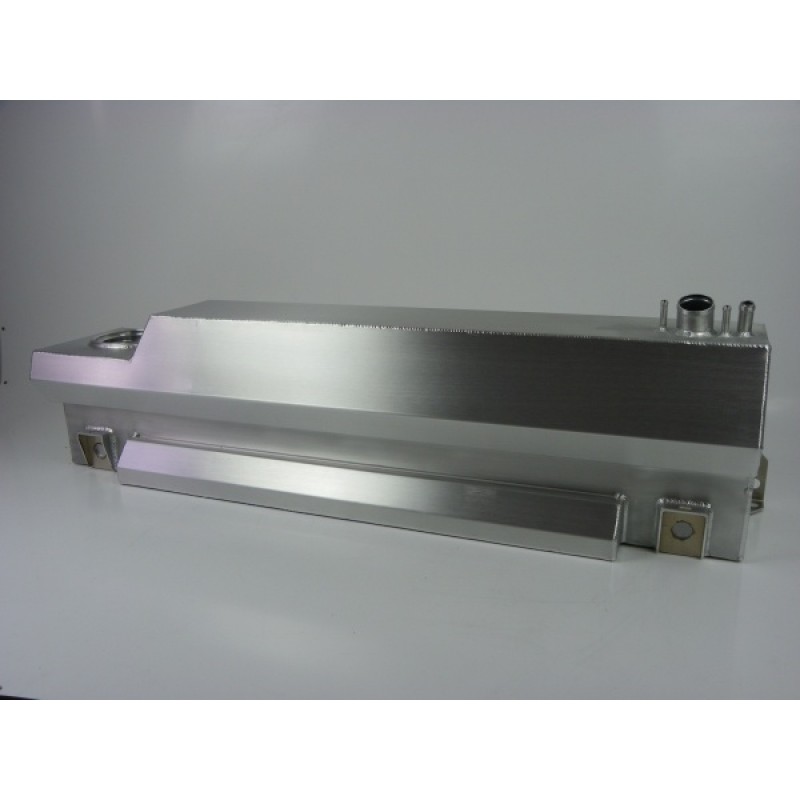

Alloy Fuel Tank Assembly

Fitting is available in our workshop.

Proudly made in England by Pro Alloy Motorsport

Eliminate Fuel Surge - Increase Long Distance Range

Anybody running a high powered VX220/Speedster on track will know that the standard tank arrangement allows the fuel to surge when making left hand corners when the tank contents falls below about half full. This can be a big problem on turbocharged/supercharged cars where weak fuelling or fuel starvation can cause terminal engine damage.

Developed and tested with Pro Alloy on their trackday cars, the long range alloy tank allows the car to be run right down to 3 litres without surge. Additionally an extra 10 litres capacity over standard adds to the car's long range capability by up to 25% on cruise.

Longer Range 48 litre Capacity (Standard Tank: 38 litres)

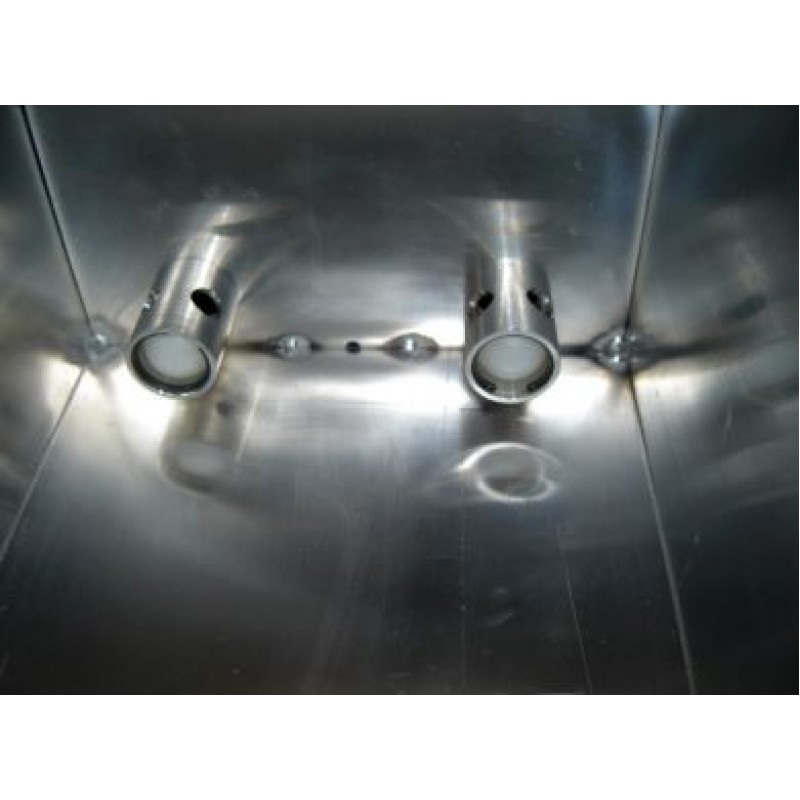

Internal collector - Assembly installed with Anti surge check valves.
Safety Foam
- Type IV FIA polyether
Light weight - A
lloy construction weighs 6.65kgs (Standard Tank: 10.8kgs)
Alloy construction - Will not corrode like the standard steel tank
Utilises Standard fuel pump and sender unit
Eliminates the need for external fuel swirl pots and collectors
Simple installation using all original fittings and brackets

Suitable for 2.0 Turbo and 2.2 Cars. Uses OE Fuel Pump Housing.

Lead Time: 14-28 Working Days

Enquiry Form.

Write a review

Please login or register to review
  • Views: 1149
  • Product Code: 48LAFT
  • Availability: 14-21 Days
  • £595.20
  • Ex Tax: £496.00
