Oil Drain Pipe - 1.6 Turbo

Oil Drain Pipe 1.6 Turbo Engine
Oil Drain Pipe 1.6 Turbo Engine

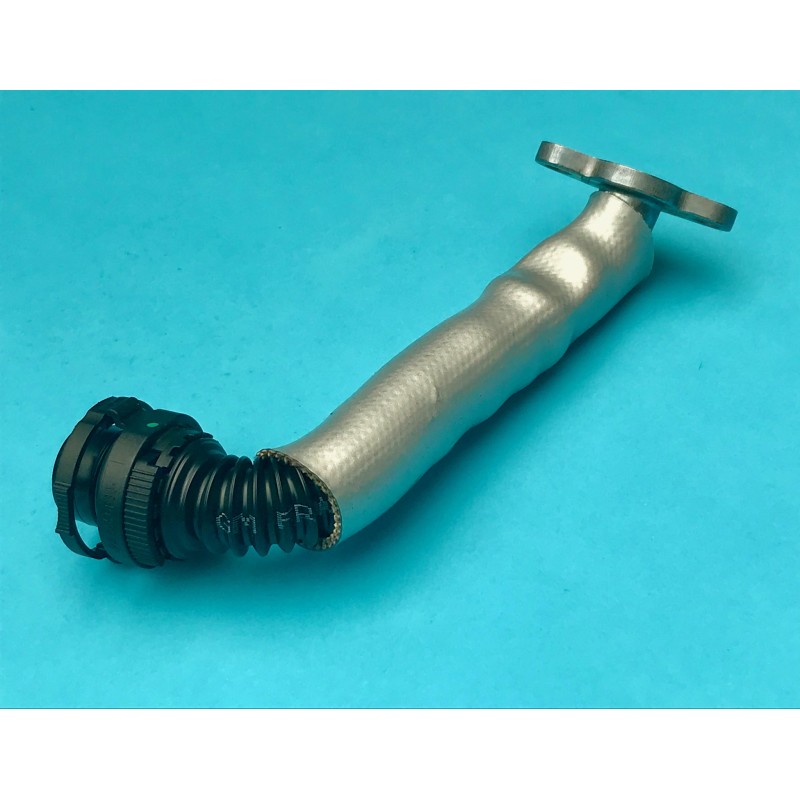

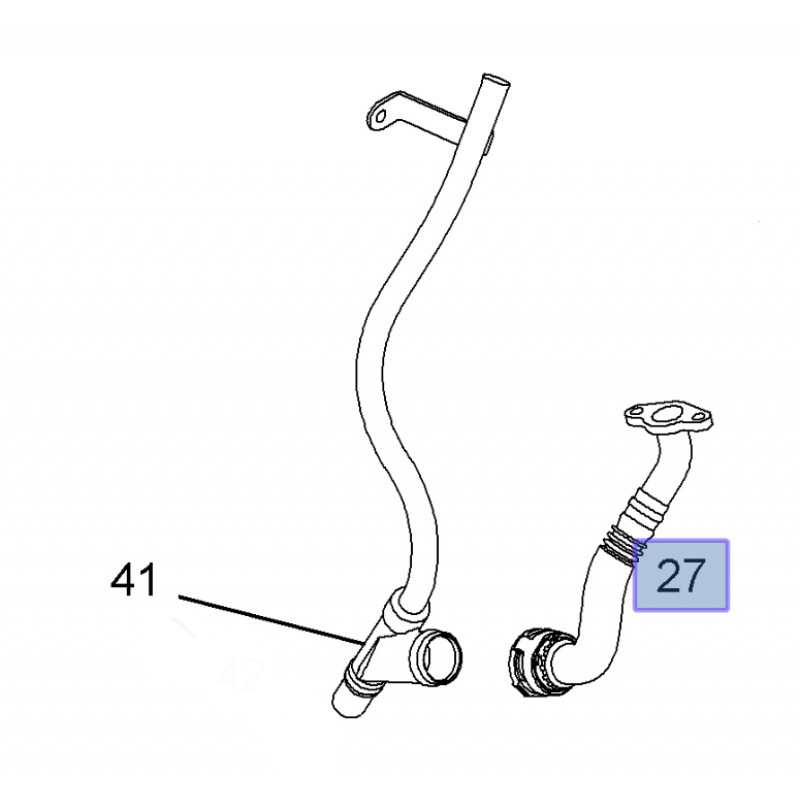

Factory Oil Drain Pipe (Item 27) for 1.6 Turbo models as listed. (Note the oil drain pipe has been revised to this later spec)

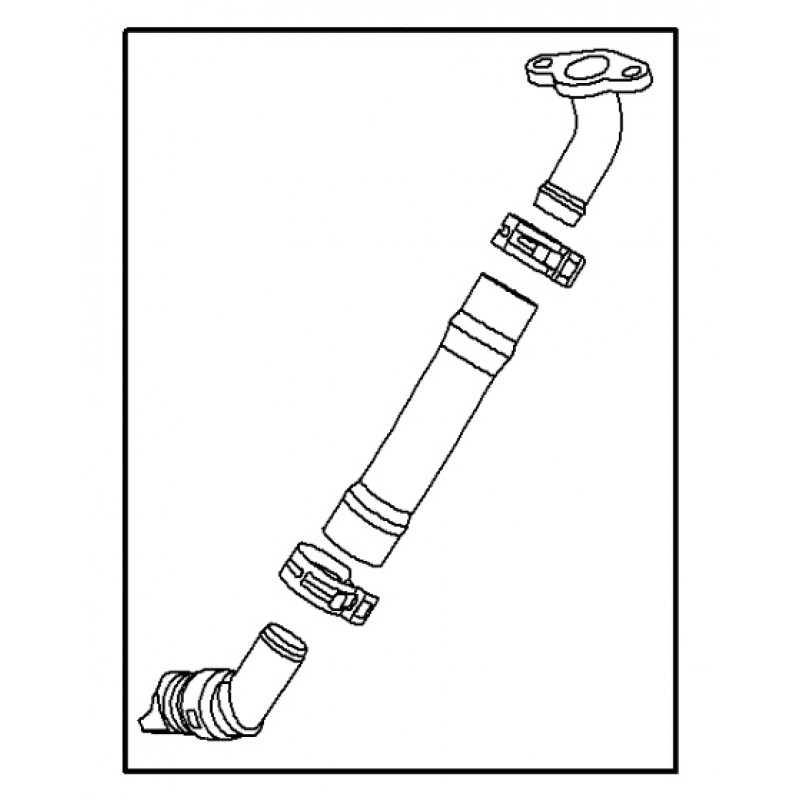

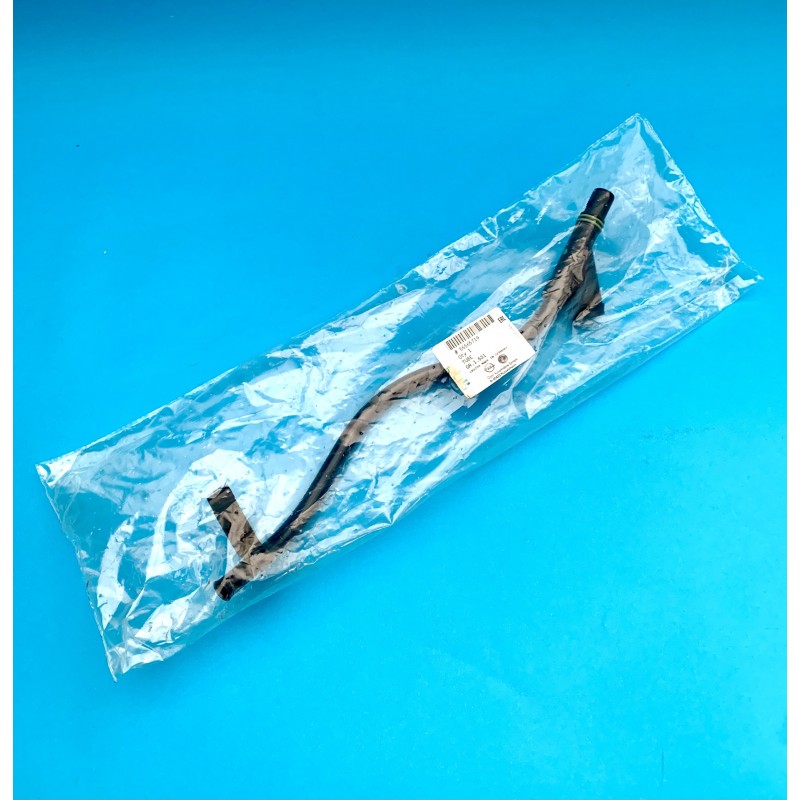

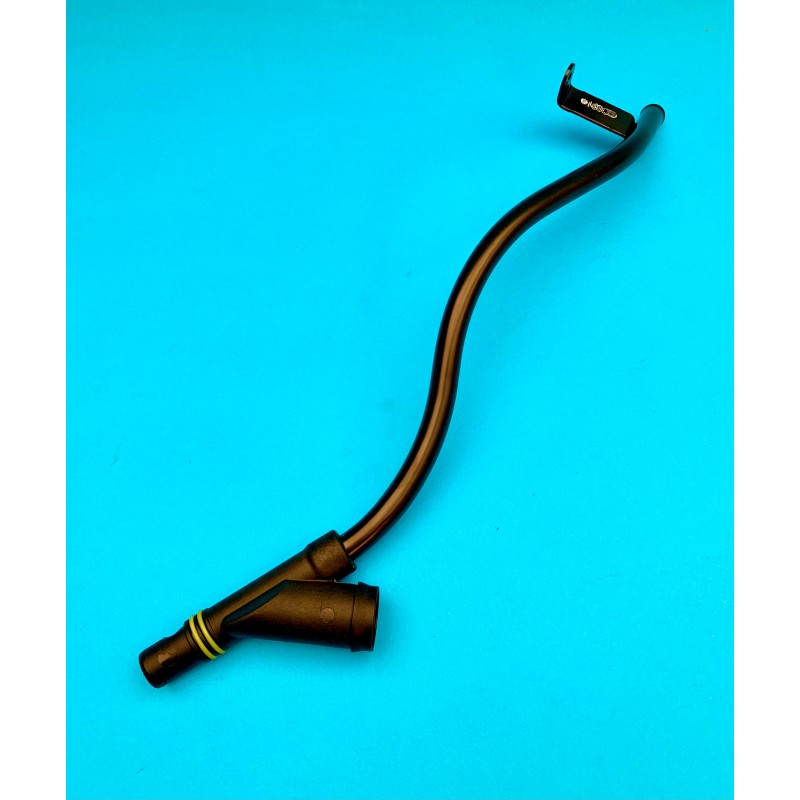

This pipe will suit all later engines which have a one piece revised oil drain pipe. Earlier engines were fitted with a different oil drain pipe (see second image) and now use this later oil drain pipe plus a revised dipstick tube 55565719.

Supercedes Part 55355621. If your oil drain is the earlier type part number 55355621 (second image) then you will need this revised oil drain and also part number 55565719

Applications:
Corsa E 1.6 Turbo: ALL Engines/VINs. This part is correct. Item 27 only. Does not need revised dipstick tube.

Corsa D 1.6 Turbo:
Late Engines/VINs from 84/86 This part is correct. Item 27 only. Does not need revised dipstick tube.
Early Engines/VINs to 84/86 - Also requires revised dipstick tube 55565719 (Item 41)

Astra H 1.6 Turbo:
Late Engines/VINs from 82/85/88/8G This part is correct. Item 27 only. Does not need revised dipstick tube.
Early Engines/VINs to 82/85/88/8G - Also requires revised dipstick tube 55565719 (Item 41)

Astra J 1.6 Turbo:
Check current oil drain. This part should be correct. Item 27 only.

Insignia A 1.6 Turbo:
ALL Engines/VINs This part is correct. Item 27 only. Does not need revised dipstick tube.

Meriva A 1.6 Turbo:
Late Engines/VINs from 84 This part is correct. Item 27 only. Does not need revised dipstick tube.
Early Engines/VINs to 84 - Also requires revised dipstick tube 55565719 (Item 41)

Notes: If in please check with us. Email your VIN (17 digits) and we will check for you.
E&OE. Information taken from Vauxhall/Opel parts catalogue and is believed to be correct at time of publishing.
