Rear Beam Mounting Bracket with Nut and Bolt - Astra H & Zafira B

Sorry Out Of Stock Rear Beam Mounting Bracket and Bolt - Astra H
Rear Beam Mounting Bracket and Bolt - Astra H

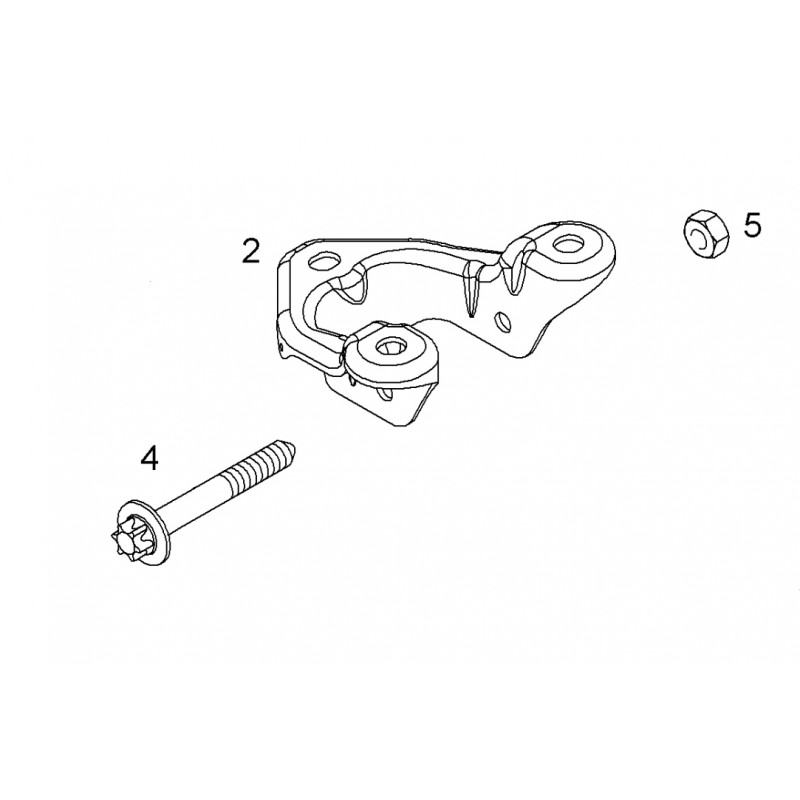

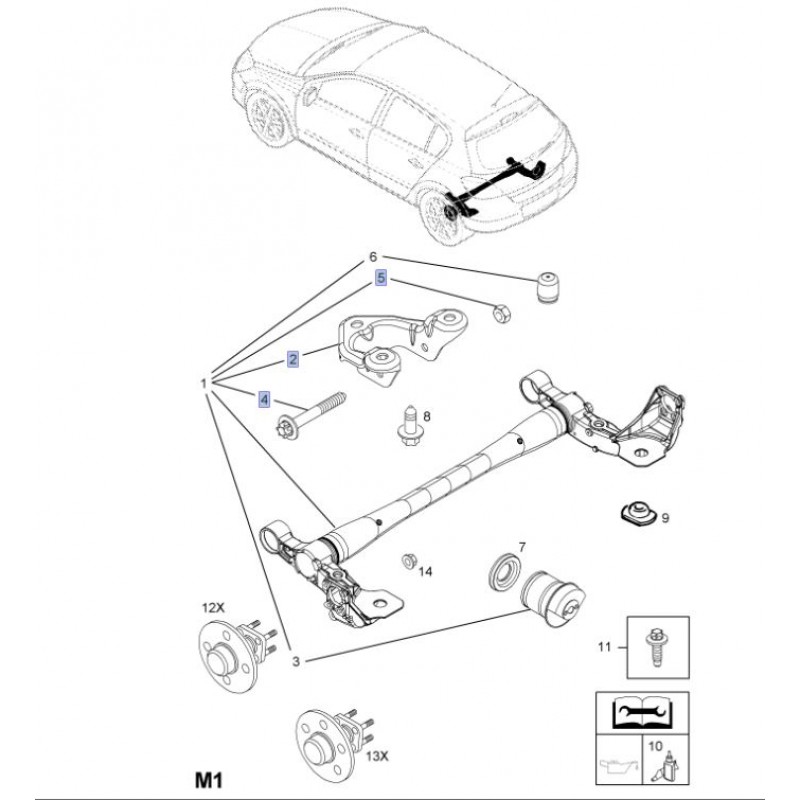

Includes 1 x Bracket, 1 x M12 x 115mm Torx Bolt, 1 x M12 Self Locking Nut. Items 2, 4 and 5 in Schematic Diagram

Bolt Location and Tightening Torques:


Rear Beam Mounting Bracket Assembly.

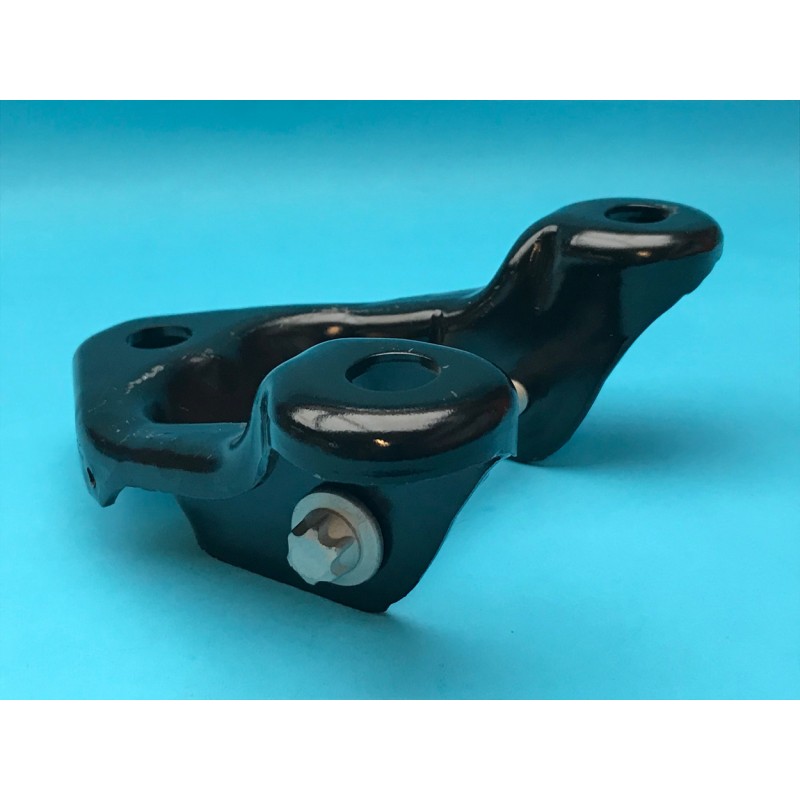

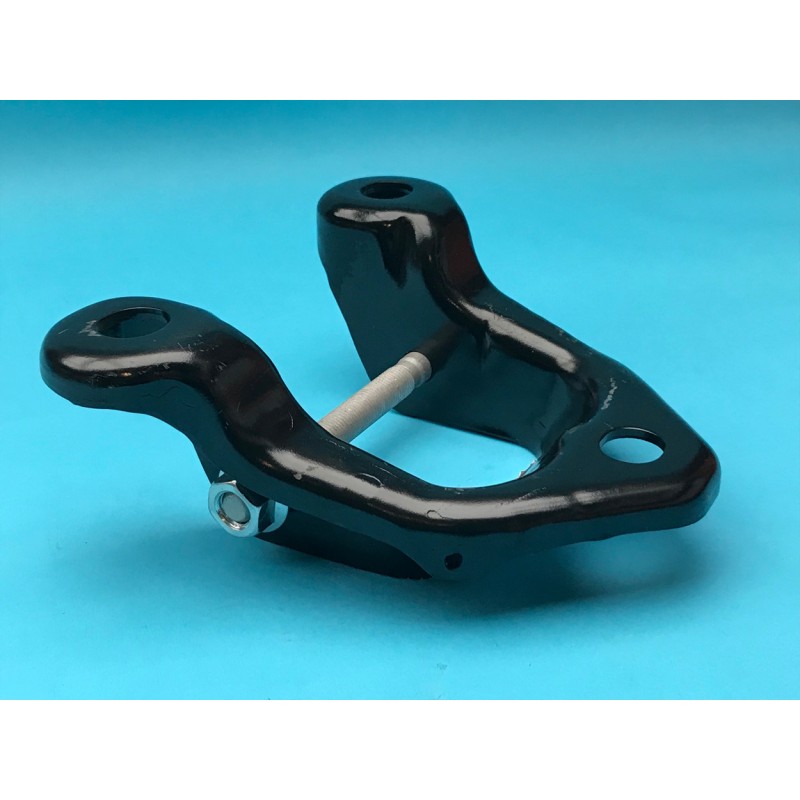

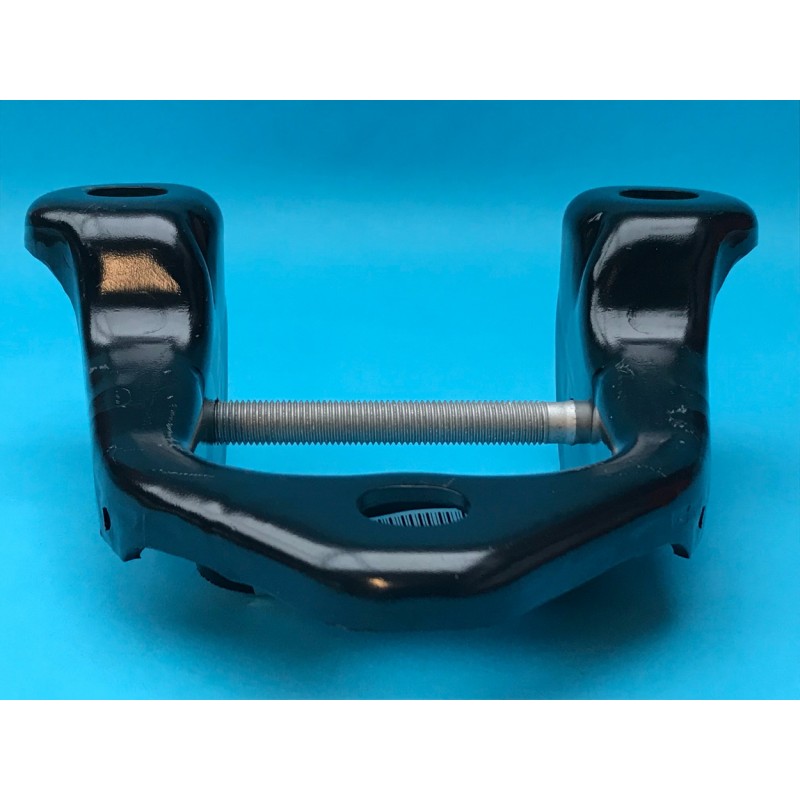

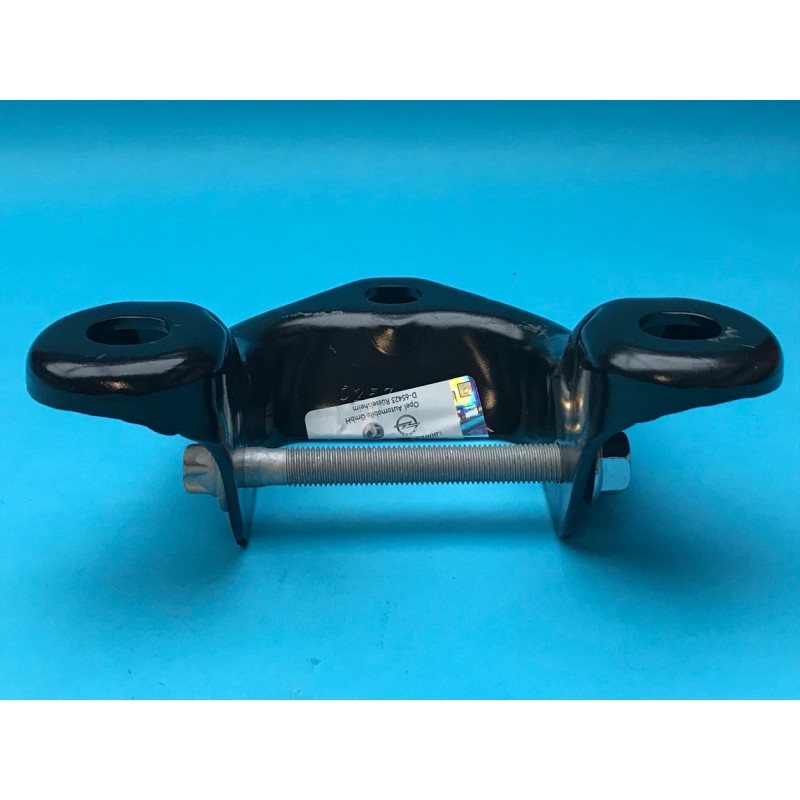

This is the Rear Beam Mounting Bracket with securing nut and bolt to secure the rear beam into the bracket.

If there has been any movement to the rear beam securing bolts, for example on models where an aftermarket rear anti roll bar has been fitted and incorrectly torqued, the beam can move and oval the hole in the bracket assembly, leading to difficult to trace knocks. Replacing the brackets will solve this particular problem.

Two Required Per Vehicle. Not Handed.

Includes 1 x Bracket, 1 x M12 x 115mm Torx Bolt, 1 x M12 Self Locking Nut. Items 2, 4 and 5 in Schematic Diagram

Fits ALL Astra H platforms:
L08 Sport Hatch 3dr inc VXR
L48 Hatch 5dr
L35 Estate
L67 Convertible Twin Top
L69 Saloon
L70 Van


Please note: Unfortunately this bracket does not fit the Astra G & Zafira A platform of cars.

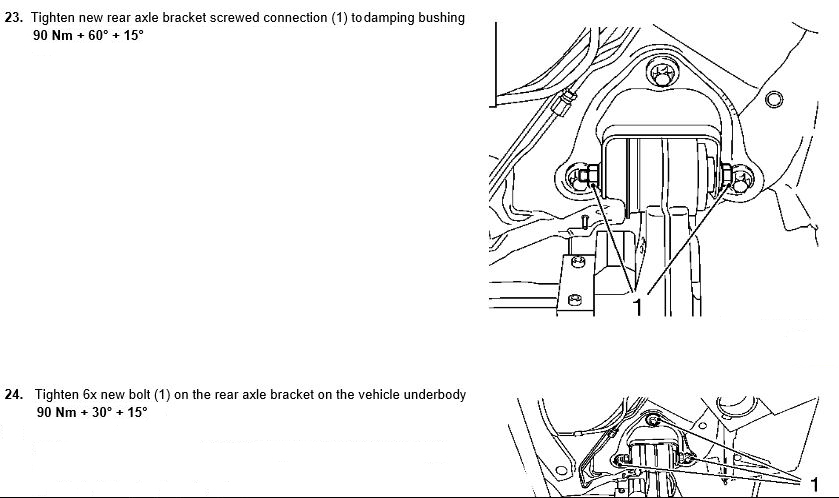

Tightening Torque:
Rear Axle Bracket to Damping Bush/Rear Beam Bush: 90Nm + 60o + 15o
Rear Axle Bracket to Vehicle Underbody: 90Nm + 30o + 15o
