1 VXR Turbo Z20LEH K04 for Z20LET/LEL/LER/LEH

10-14 Days 1 VXR Turbo  Z20LEH K04 for Z20LET/LEL/LER/LEH
VXR Turbocharger Z20LET/LEL/LER/LEH

1 x Complete Turbocharger Assembly which includes Exhaust Manifold, Turbocharger (Core and Compressor Cover), boost control solenoid and vacuum pipes, factory actuator and factory recirculation valve.

In house fitting from £288
Fully fitted price including turbocharger, stud and nut kit, turbo gasket set, oil filter, 5w-40 engine oil from £895.00 including up to 12 months/12,000 mile warranty.

>>>>> VXR Turbo Fitting Guidelines - Click Here <<<<<

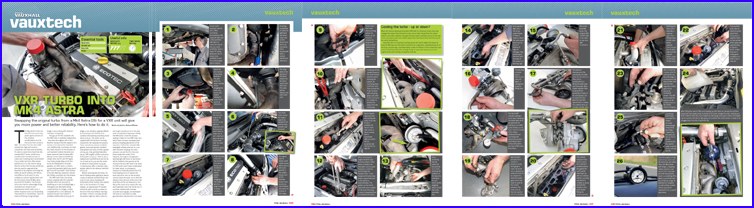

Astra G Turbo Fitting Guide:

Click on the below image for a guide to fitting a VXR turbo into Astra G.

February 2010 Total Vauxhall Magazine
Please Note: The information on this page is provided purely as a guide. This information is not intended to offer step by step fitting. Please ensure that before commencing any work you have the appropriate level of skill and knowledge to undertake any work safely and competently. Courtenay Sport Ltd accept no responsibility for any loss, damage, injury or consequential loss that may arise from individuals working on their own vehicles. If you are in any way unsure about how to proceed with anything, seek professional advice and help.

Please Note: Turbochargers supplied by mail order are supplied without warranty. As Vauxhall will only warrant these units for their intended purpose i.e. fitment to factory specification Astra H/Zafira B VXR, we are unable to extend a warranty onto them when supplied mail order due to the varied nature of fitment and application outside of these parameters.
For units supplied and fitted by us on our premises we will offer our own 12 month/12,000 mile warranty.

Astra H VXR Turbo K04 Standard Turbocharger for Z20LET / Z20LEL / Z20LER engines. 55559850
Factory turbocharger as fitted to Astra H VXR/OPC and Zafira B VXR/OPC from the factory (Z20LEH engine).
Suitable for Z20LET / Z20LEL / Z20LER Standard Power Engines.

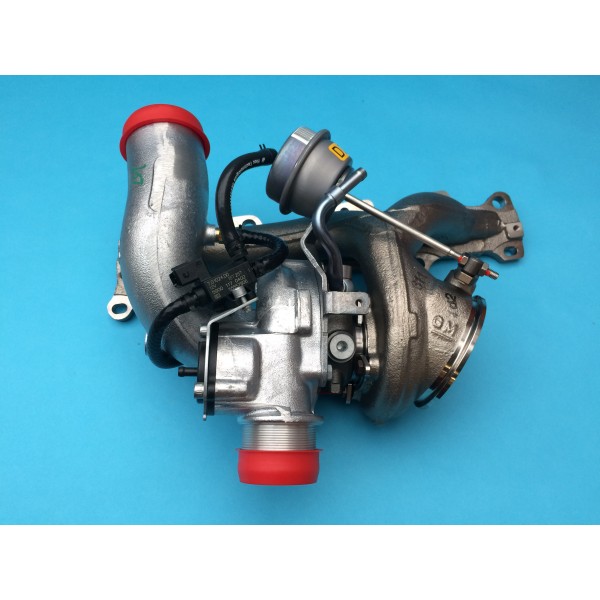

Image shows Z20LEH VXR Turbocharger with actuator adjusted to suit Z20LET / Z20LEL / Z20LER Standard Power Engines.

Direct replacement turbo for:
Standard Mapped Astra G Z20LET , Astra H (Non VXR) Z20LEL/Z20LER, Zafira A Z20LET and Zafira B (Non VXR) Z20LER 2.0 Turbo models.

Performance Upgrade for:
Astra G, Astra H (Non VXR), Zafira A and Zafira B (Non VXR) models, when suitably remapped.

From the extensive testing that we have carried out we can now offer the Astra H VXR turbo as a great alternative for the hybrid Z20LET turbo units in the marketplace, for fitment onto Z20LET Astra SRi/GSi 2.0 Turbo, Zafira GSi Turbo, Astra H SRi 2.0 Turbo (Z20LEL/Z20LER) and Zafira B SRi 2.0 Turbo (Z20LER).

Offering drivability more like a manufacturer's standard unit, rather than a hybrid, and spooling up more quickly this is an ideal alternative for those wanting to upgrade to the Stage 3 or 4 conversion with appropriate software remap.

This unit not only features a better AR ratio than a standard Z20LET/Z20LEL/Z20LER turbo but we also favour this turbocharger as it has a stronger cast manifold providing extra durability and therefore can withstand greater temperatures, heat being an issue with turbo models. The standard Z20LET/LEL/LER turbo manifold has been known to crack and so this Z20LEH unit is preferred over a hybrid ZLET turbo which is rebuild into the original weaker manifold which is prone to cracking.

This turbo is available as a complete unit, with the VXR actuator which can be used on Standard cars as well as Stage 1, 2 or 3 mapped cars and with Uprated actuator and bracket if being used on a Stage 4 Astra G/Zafira A mapped car, or Stage 3 Astra H/Zafira B VXR.

We are also able to offer hybrid versions of this Z20LEH turbo.

Suitable as a direct replacement unit for any Z20LET/Z20LEL/Z20LER/Z20LEH engined car running factory standard software where the 'OE' unit is faulty and requires replacement. No remap required!! Use with VXR actuator adjusted to suit.

This turbo is also suitable as a direct replacement for the standard OE turbo as fitted to Astra H VXR/OPC and Zafira B VXR/OPC

Can be supplied with:
Standard VXR Actuator or Uprated Courtenay Turbosmart Actuator and Bracket

Leave VXR Actuator Set at Factory Spec or Adjust OE VXR Actuator down to suit a standard Z20LET car.

Gasket Set - Exhaust Manifold to Head Gasket,Turbo Oil Drain Gasket (for early type metal flexi oil drain pipe), Oil Breather Tube to Block Gaskets AND Oil and Water Feed and Return Copper Washers

Turbo Stud and Nut Kit

Front Pipe Clamp

OPTION 4 (Oil):
Valvoline Fully Synthetic 5w-40 (API:SM specification) Oil (5 Litres), OE Oil Filter and sump washer.
Valvoline Fully Synthetic 5w-50 VR1 Racing Oil (5 Litres), OE Oil Filter and sump washer.

Stainless Steel Washer Plate

Astra G 2.0 Turbo Petrol
Zafira A 2.0 Turbo Petrol
VX220/VXR220 2.0 Turbo
Astra H 2.0 Turbo Petrol
Zafira B 2.0 Turbo Petrol
Zafira B VXR/OPC

Please Note: This original equipment turbo unit is supplied with no warranty.

For units supplied and fitted by us on our premises we will offer our own 12 month/12,000 mile warranty.

Additional Details
Commodity Code 84099100

Enquiry Form.

Write a review

Please login or register to review
  • Views: 41290
  • Product Code: 55559850
  • Availability: 10-14 Days
  • £549.00
  • Ex Tax: £457.50
