Turbocharger K06 Z16LEx A16LEx B16LEx 1.6 Turbo

Sorry Out Of Stock 1.6 Hybrid Turbo and Z16LEH Manifold
1.6 Hybrid Turbo and Z16LEH Manifold

K06 Turbocharger assembly (reworked from K04 Z20LEH VXR unit) and manifold for 1.6 Turbo Z16LEx/A16LEx/B16LEx

This turbocharger assembly consists of a K06 turbocharger fitted into our cast manifold suitable for 1.6 Turbo engine.

The turbocharger assembly is the same unit as fitted to the Z20LEH Astra H VXR/OPC engine, but mated to our own cast manifold featuring a 20% increase in flow.

The cast manifold is manufactured in the same way as an Original Equipment (OE) manifold would be fabricated.

The result is a turbocharger assembly for the 1.6 Turbo enginethat is capable of flowing more air, thus producing more boost and therefore more power and torque.

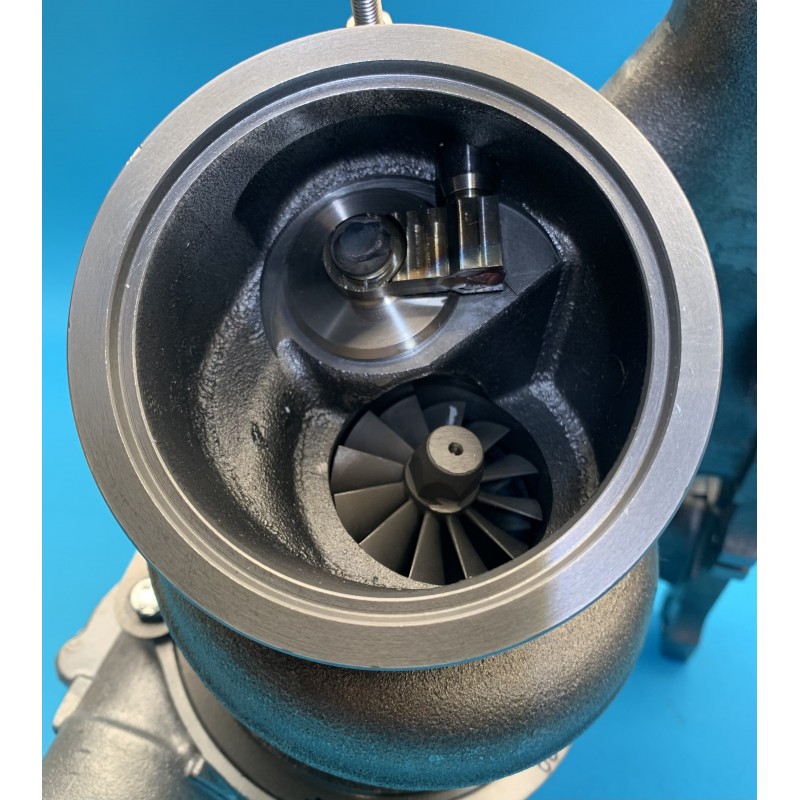

In fact our Z16LEH manifold has a 20% larger exhaust housing than the Z20LEH manifold and the wastegate aperture is also 20% bigger, sothe Z16LEH manifold willoffer much greater flow than the equivalent Z20LEH turbo manifold.

It has been designed for the Vauxhall/Opel 1.6 Turbo Z16LEx/A16LEx engines - Z16LET, Z16LEL, Z16LER,A16LETas fitted to Corsa D VXR/OPC and SRi Turbo, Astra HTurbo, Meriva VXR/OPCand Insignia 1.6 Turbo to allow the fitment of the core turbo charger from the Astra VXR Z20LEH engine.

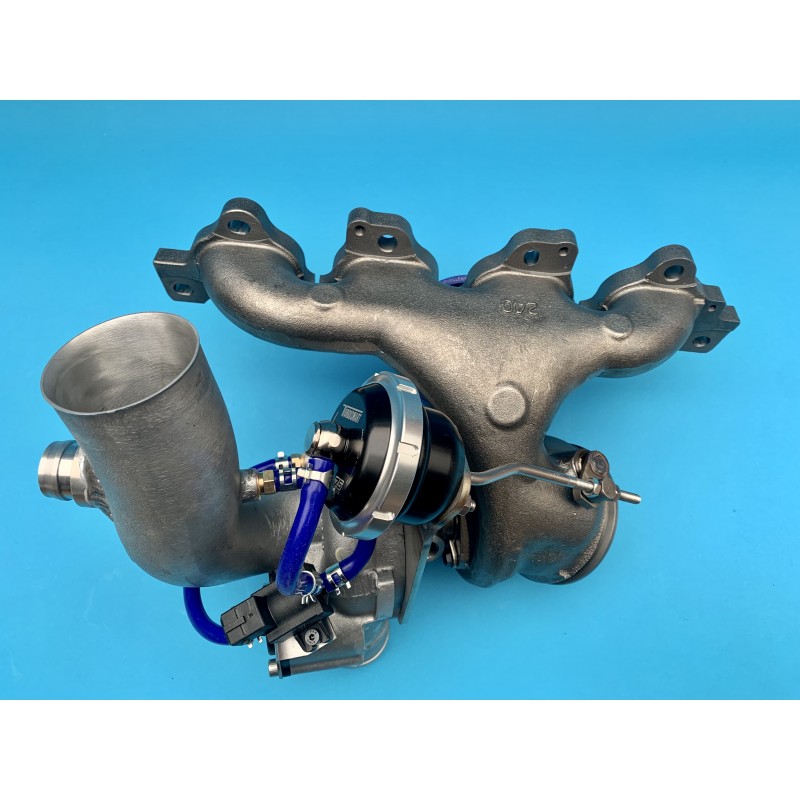

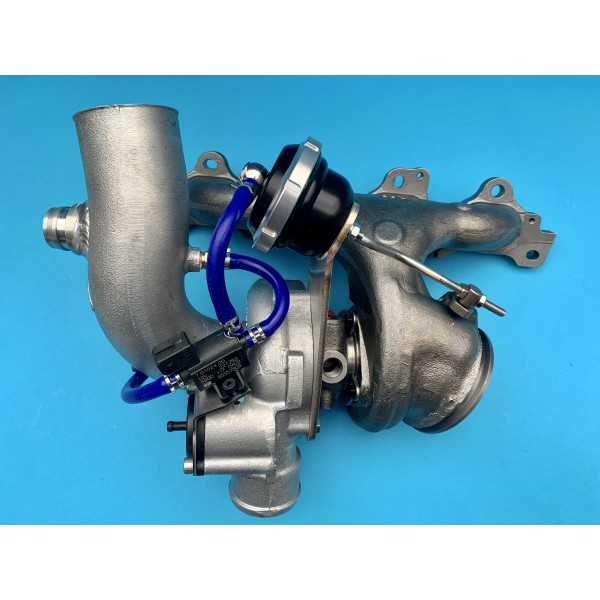

It fits directly to the head as an OE 1.6 manifold will and the front pipe location is in the same location as the original - no exhaust adapter piece is required, soa standard pre-cat or a pre-cat replacement pipe will bolt straight on with no modification whatsoever. So this really is direct fit. Look closely at the images, and whilst this looks like a Z20LEH turbo, you will see the designation Z16LEH on the cast manifold for the 1.6 application.

We have also made provision for the addition of an EGT probe into the manifold if required.

Available with Z20LEH K04 turbo unit which can be supplied with or without an upgraded turbo bearing pack and exhaust wheel cut back.

K06 300-315bhp.

Enquiry Form.

Write a review

Please login or register to review
  • Views: 5948
  • Product Code: K06Z16
  • Availability: Sorry Out Of Stock
  • £1,960.00
  • Ex Tax: £1,633.34
